Stepper motor

Brief description : Stepper motor

  • Category : Stepper motor
  • Release date : 2024-12-11
  • Clicks : 2832
return

Product Series

Contact Us

Contact : Mr Josh

Cell phone : 0086-574-86325805

Email : sales@jantmotor.com

Website : www.jantmotor.com

Address : Longshan Industry Zone, Cixi, Ningbo, China.315200

Description

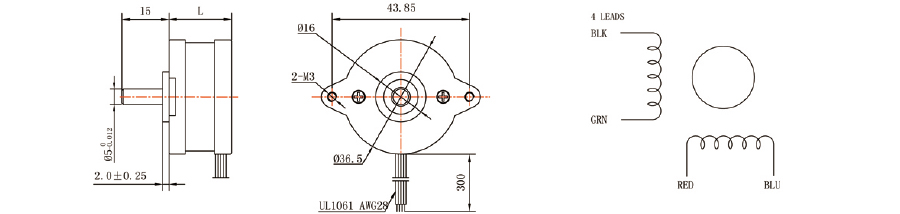

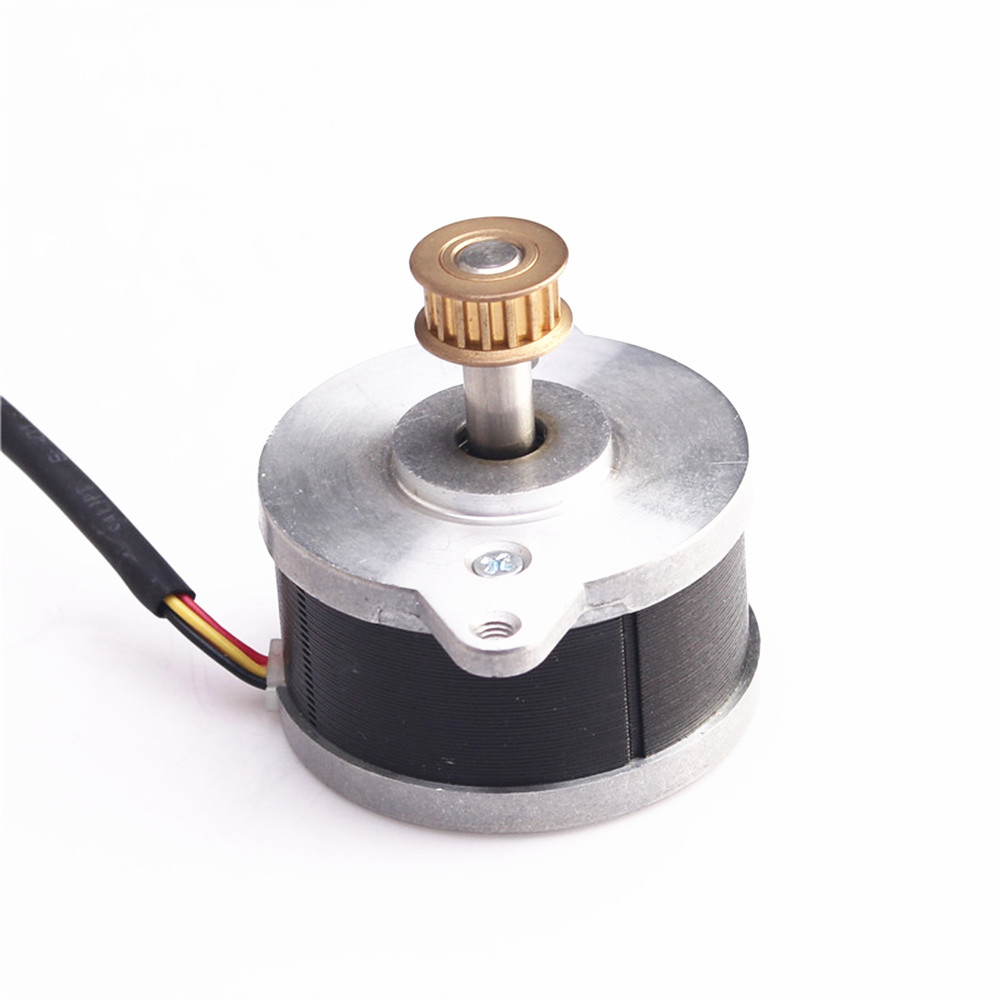

36BYGH0.9°steppermotor

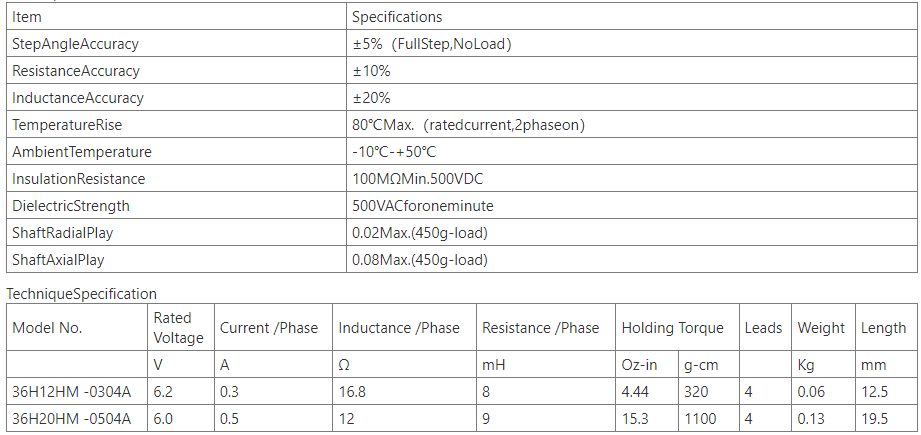

TechniqueParameter

ItemSpecifications
StepAngleAccuracy±5%（FullStep,NoLoad）
ResistanceAccuracy±10%
InductanceAccuracy±20%
TemperatureRise80℃Max.（ratedcurrent,2phaseon）
AmbientTemperature-10℃-+50℃
InsulationResistance100MΩMin.500VDC
DielectricStrength500VACforoneminute
ShaftRadialPlay0.02Max.(450g-load)
ShaftAxialPlay0.08Max.(450g-load)

TechniqueSpecification

Model No.Rated
Voltage		Current /PhaseInductance /PhaseResistance /PhaseHolding TorqueLeadsWeightLength

VAΩmHOz-ing-cm
Kgmm
36H12HM -0304A6.20.316.884.4432040.0612.5
36H20HM -0504A6.00.512915.3110040.1319.5
