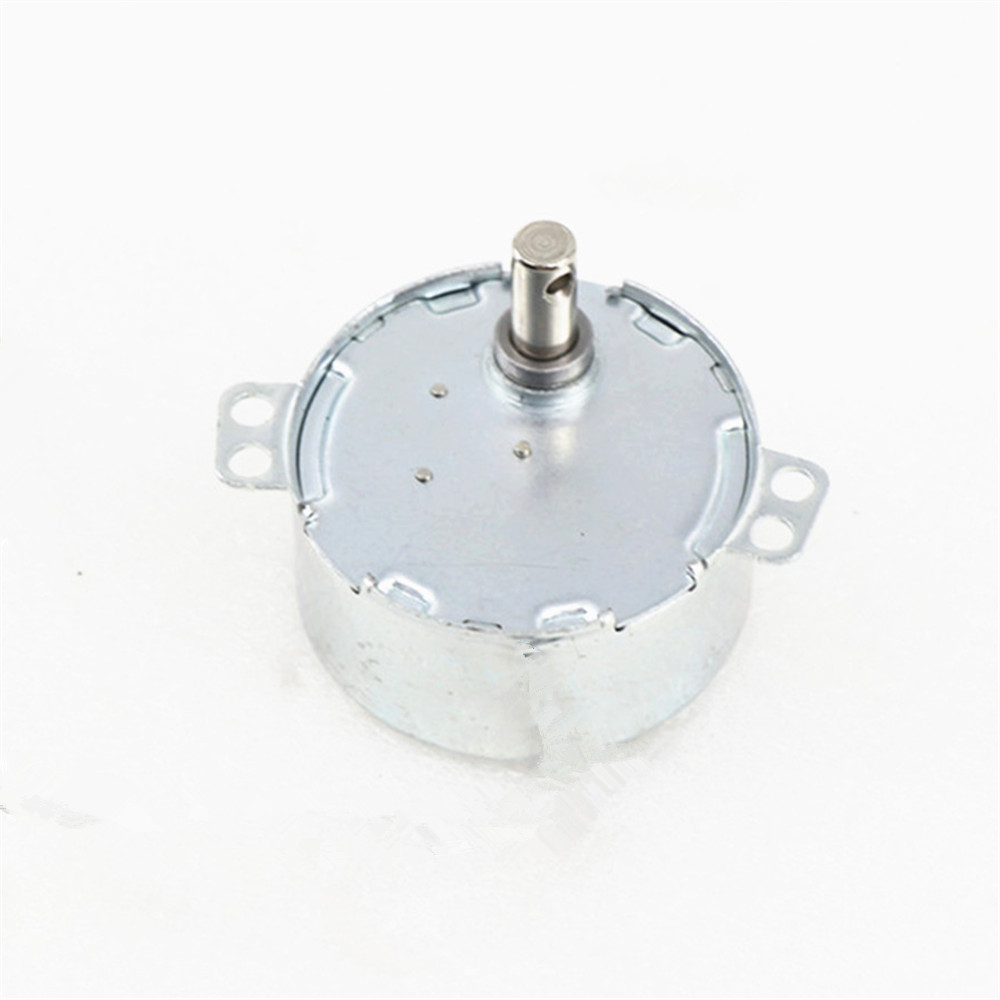

Synchronous motor 49TYJ

Application Scope:
Fan heaters,Radiant heaters,oil filled heaters, electrical fan,
mini fan,suction fan,oscillation fan,canal fan,wall fan.
Micro-wave oven,air-conditioning sweep board
Main technical paramater:
1.Rated voltage 24V, 36V, 100V, 120V, 220/240V
2.Dielectric strength 1500VAC/min
3.Power consumption <4W Noise <45db
4.Input current <25mA Coil temperature rise 60K
5.Rated frequency 50/60Hz Insulation class E
6.Speed 1,2.5/3, 5/6, 10, 15,18, 33/40rpm
7.insulated electricity power 1800V/1s
8.Starting voltage 10, 5, 3, 2, 1.3Kgf.cm
9.Direction: CW,CCW or free direction
10.Insulation resistance >100MΩ
