Timer

Brief description :

  • Category : Timer
  • Release date : 2025-04-16
  • Clicks : 2916

Contact Us

Contact : Mr Josh

Cell phone : 0086-574-86325805

Email : sales@jantmotor.com

Website : www.jantmotor.com

Address : Longshan Industry Zone, Cixi, Ningbo, China.315200

Description

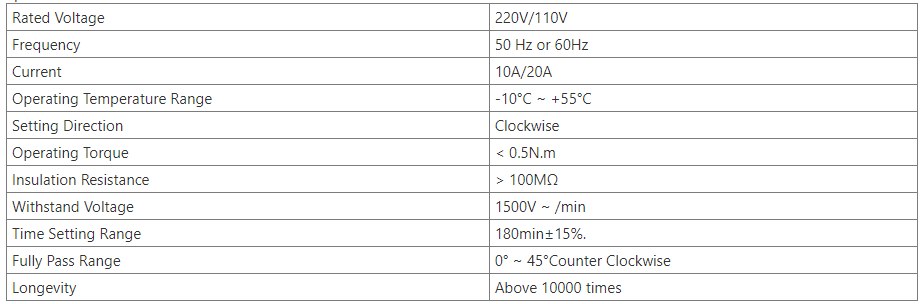

  • Specification:

  • MLL{GIRSFZL6{DRCR[CPBBF.png

    Application:Mechanical component timer is key of electric fan .It can limit the operating time of fan

  • within certain selection .
    When settled time is up. the power will be off automatically and operating stopped. Mainly used for

    timing of Fanner,
    Heater (Fireplace),and other home appliances.

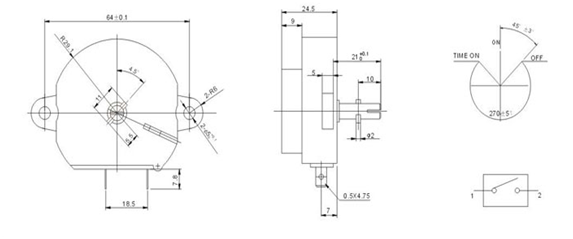

    Contour diagram:


    FEATURE:
    DFJ-A mechanical timer is designed as plastic and steel structure. It has the advantages of novel structure.
    Exact time-operating and convenient used and  in  staling.
    Main Technique Data:
    Time limitation 180±27min
    Insulation  resistance:  not less than 100M
    No break down and scintillation will be taken place while testing under 1500V .50HZ for 1 min
    Natural service life: more than 10000 times.
    Measure: 76mm*60mm*50mm (refer to Overall Dimensions)
    Weight : less than 50g
    Remarks
    1.Colour & length of conducting wire can be made according to the requirement of users2。
    2.The output shaft can be made according to the consumers need
    3.Working voltages and frequencies can be made as per users' requirements
